National Item Identification Number
01-317-1046
013171046
4710-01-317-1046
4710013171046
National Stock Number
Item Name

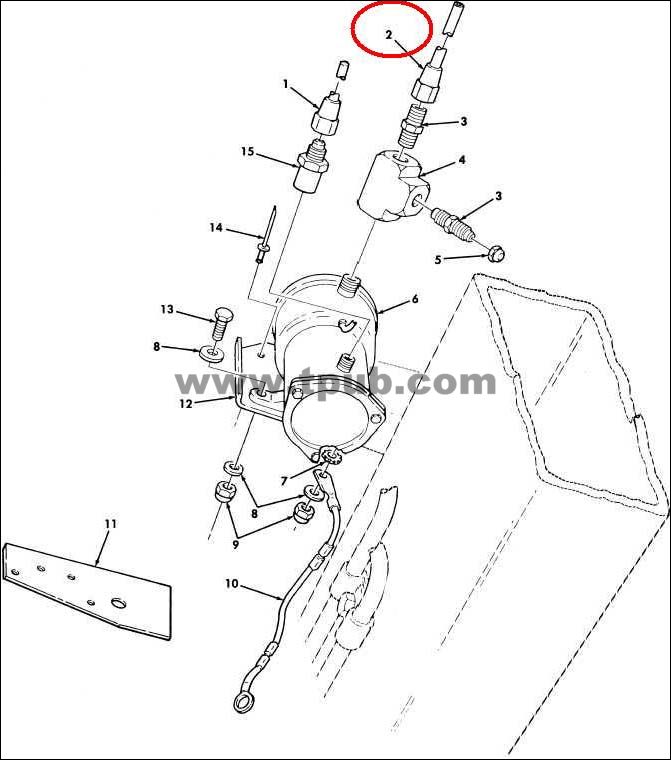

TUBE ASSEMBLY,METAL
Federal Supply Class
4710
Description
A length of tubing, straight, or prebent to a predetermined angle, with added component(s) that forms an end connection on one or both ends. For flexible tube assemblies, see HOSE ASSEMBLY (as modified). For items having perforations in the tubing or attachments, see TUBE ASSEMBLY, FIRE EXTINGUISHING SYSTEM. Excludes items having integral preformed or plain ends, TUBE, BENT (as modified), and items which are branched or forked.
Commercial and Government Entity Code (Supplier Data)
19207
34623
NSN (National Stock Number) 4710-01-317-1046, 4710013171046 NIIN (National Identification Number) 01-317-1046, 013171046
Part Numbers (Reference Numbers)
12342277
12342277
Required Categories
TUBING MATERIAL
TUBE OUTSIDE DIAMETER
WALL THICKNESS
END CONNECTION STYLE
MA
Required Description
STEEL, MIL-T-3520, TYPE 1
0.312 INCHES NOMINAL
0.028 INCHES NOMINAL
B11 SWIVE
